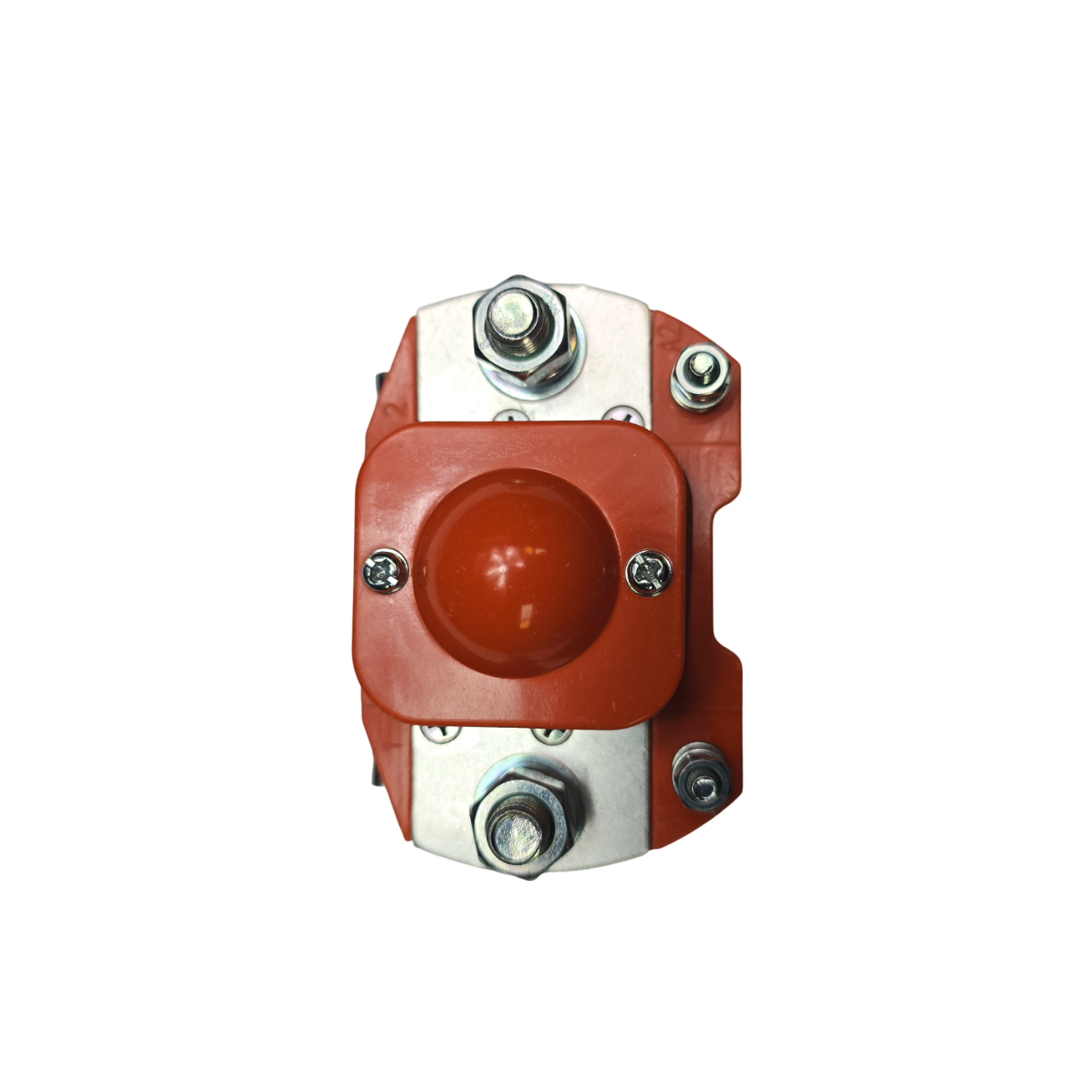

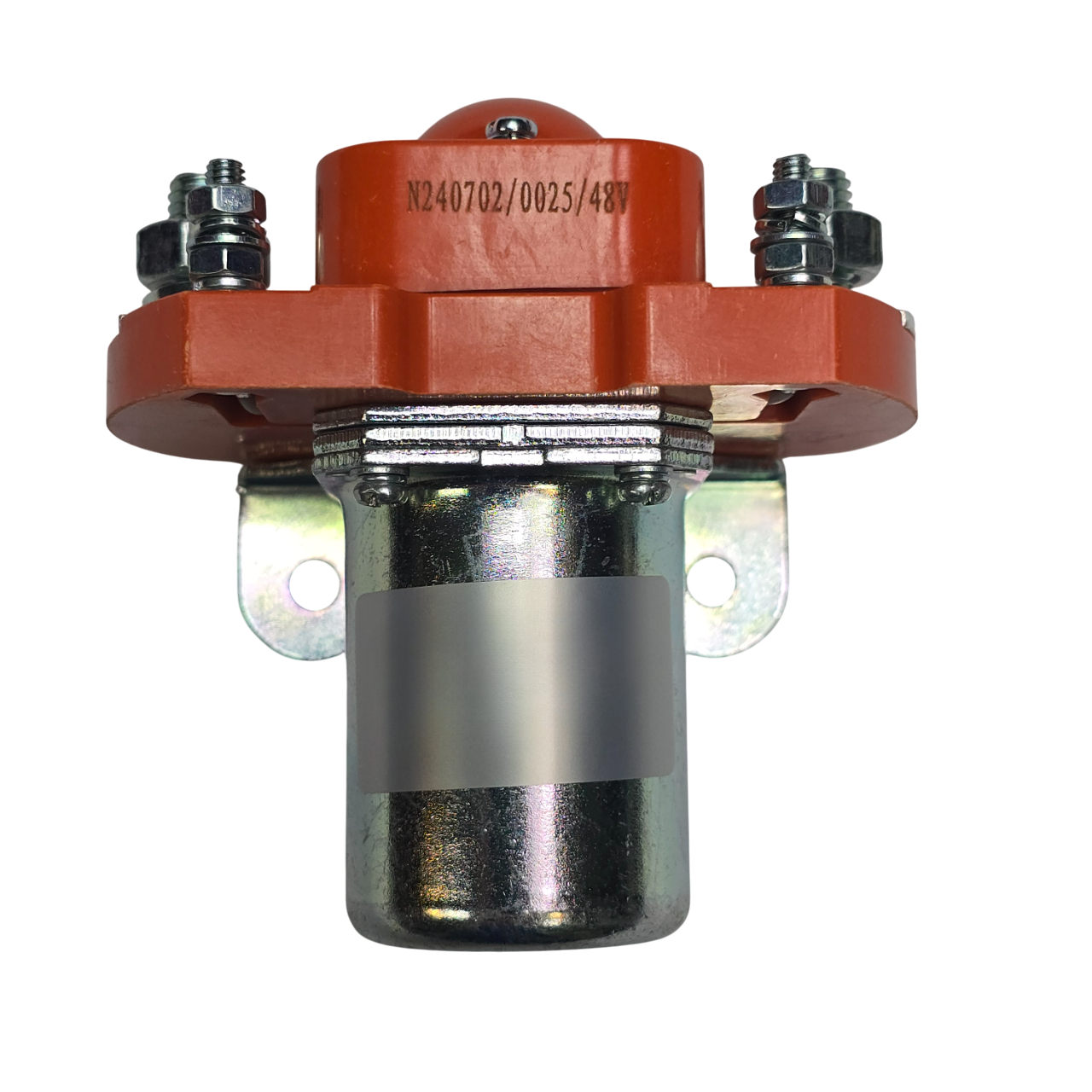

200 AMP Solenoid

This high-performance 200 AMP solenoid contactor is engineered for reliable and consistent operation in high-current DC circuits. Ideal for use in electric vehicles (EVs), golf carts, forklifts, solar systems, and other industrial applications requiring robust switching of large DC loads.

Key Features:

🔧 High Current Capacity – 200A
Supports continuous current up to 200 amps, ideal for heavy-duty applications with large DC power demands.

⚡ 48V DC Coil Voltage
Optimized for 48V systems, providing fast and efficient switching with low power consumption.

🔒 Durable and Vibration-Resistant
Built with high-strength insulation materials and vibration-proof terminals for harsh environments.

🛠️ Silver Alloy Contacts
Ensures minimal contact resistance and long service life, even under frequent switching conditions.

🧲 Strong Electromagnetic Coil
High-efficiency coil provides quick response and reliable activation with low heat buildup.

🛡️ Corrosion-Resistant Design
Zinc-coated body and sealed construction protect against rust, moisture, and environmental damage.

Technical Specifications:

• Continuous Current Rating: 200A

• Coil Voltage: 48V DC

• Contact Voltage Rating: Up to 60V DC

• Mounting: Flange-type with pre-drilled holes for easy installation

• Terminal Type: Heavy-duty threaded studs

• Housing Material: Flame-retardant thermoplastic & metal

Applications:

• Electric vehicles (EVs & e-bikes)

• Golf carts and industrial trucks

• DC motor controllers

• Solar battery bank systems

• Winches and inverters

• Marine and RV power management
