Charger Receptacle

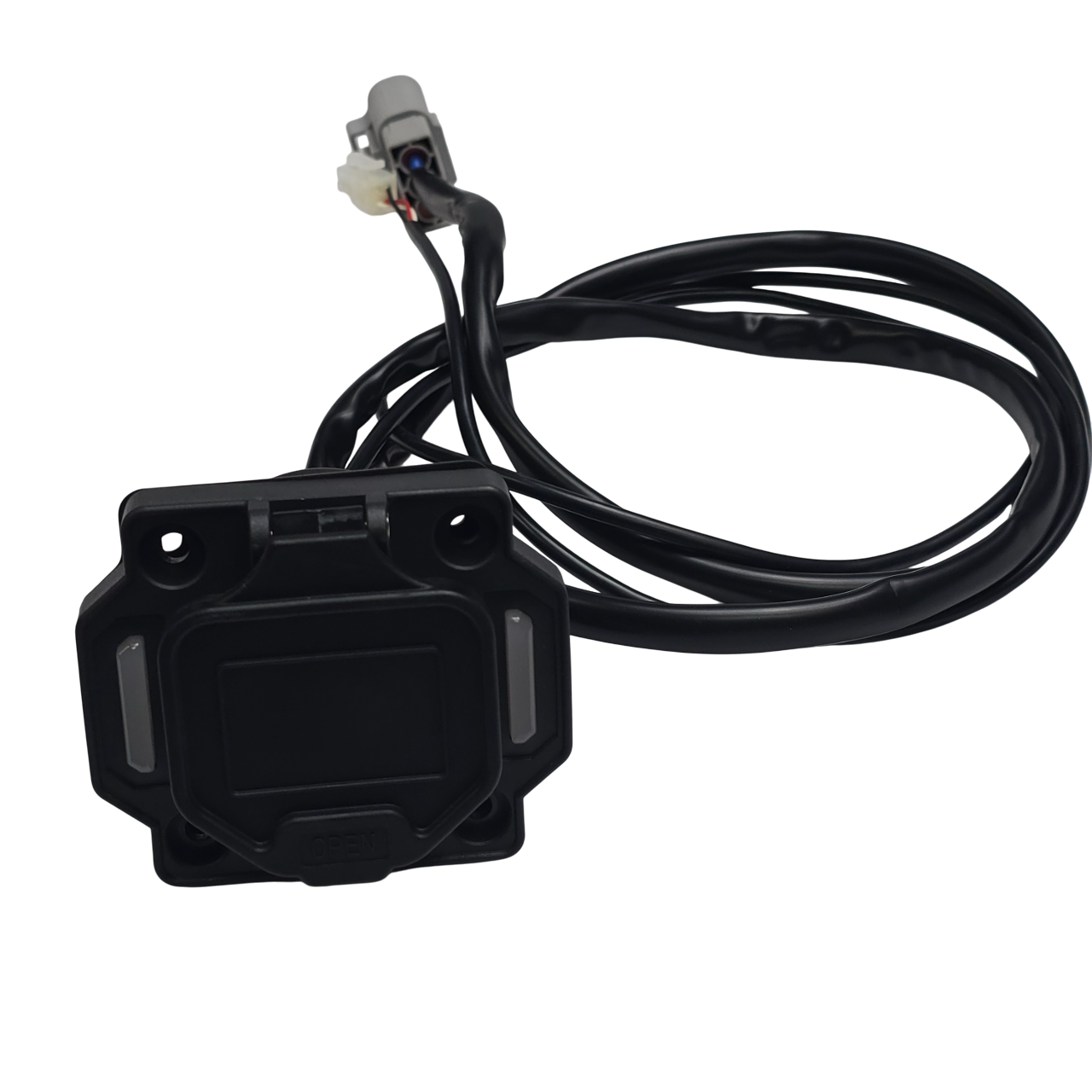

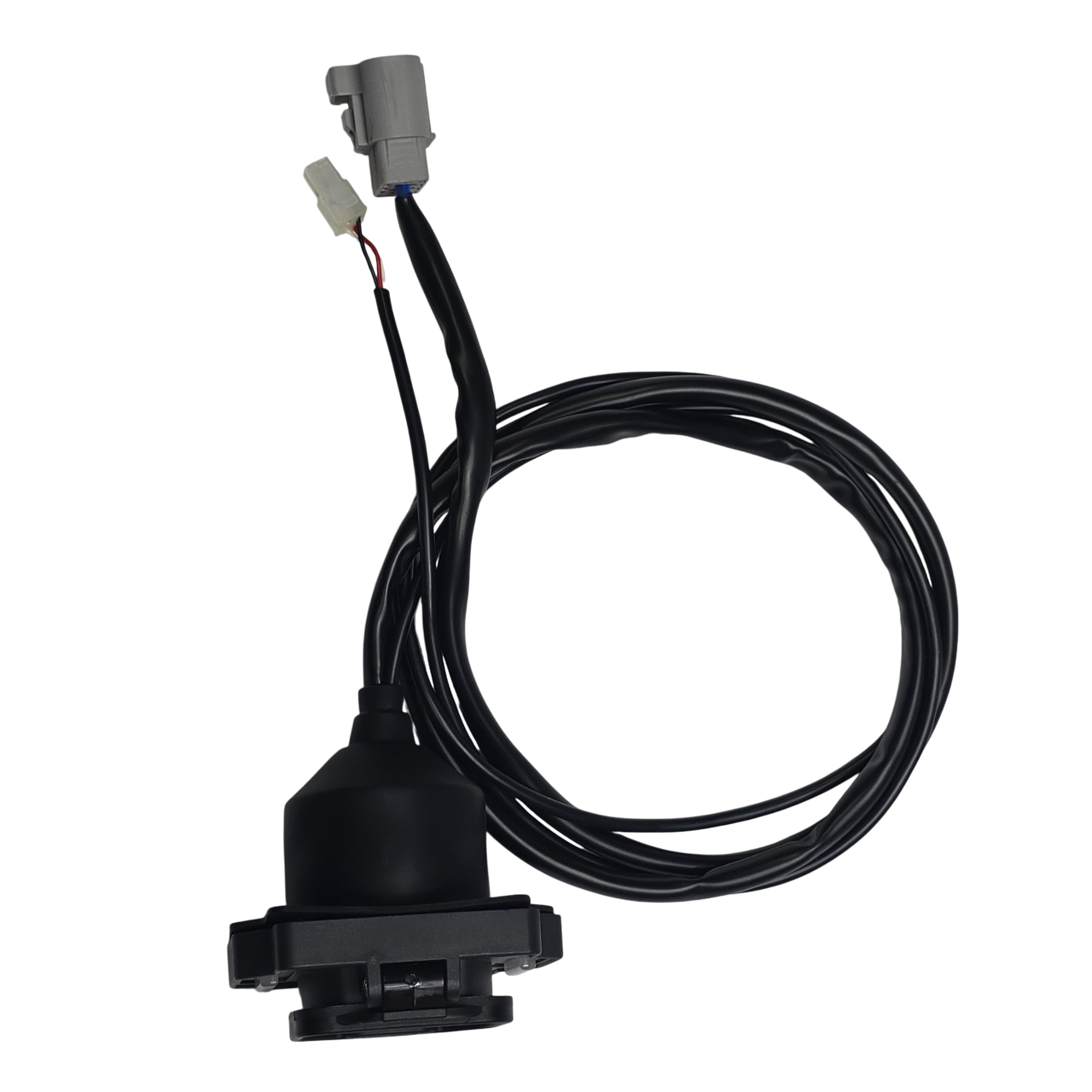

This high-quality EV charger receptacle is a Type 2 (IEC 62196-2 standard) female socket, designed for seamless integration into electric vehicle charging systems. It is ideal for wall-mounted EV chargers, charging stations, or electric vehicle inlets.

Key Features:

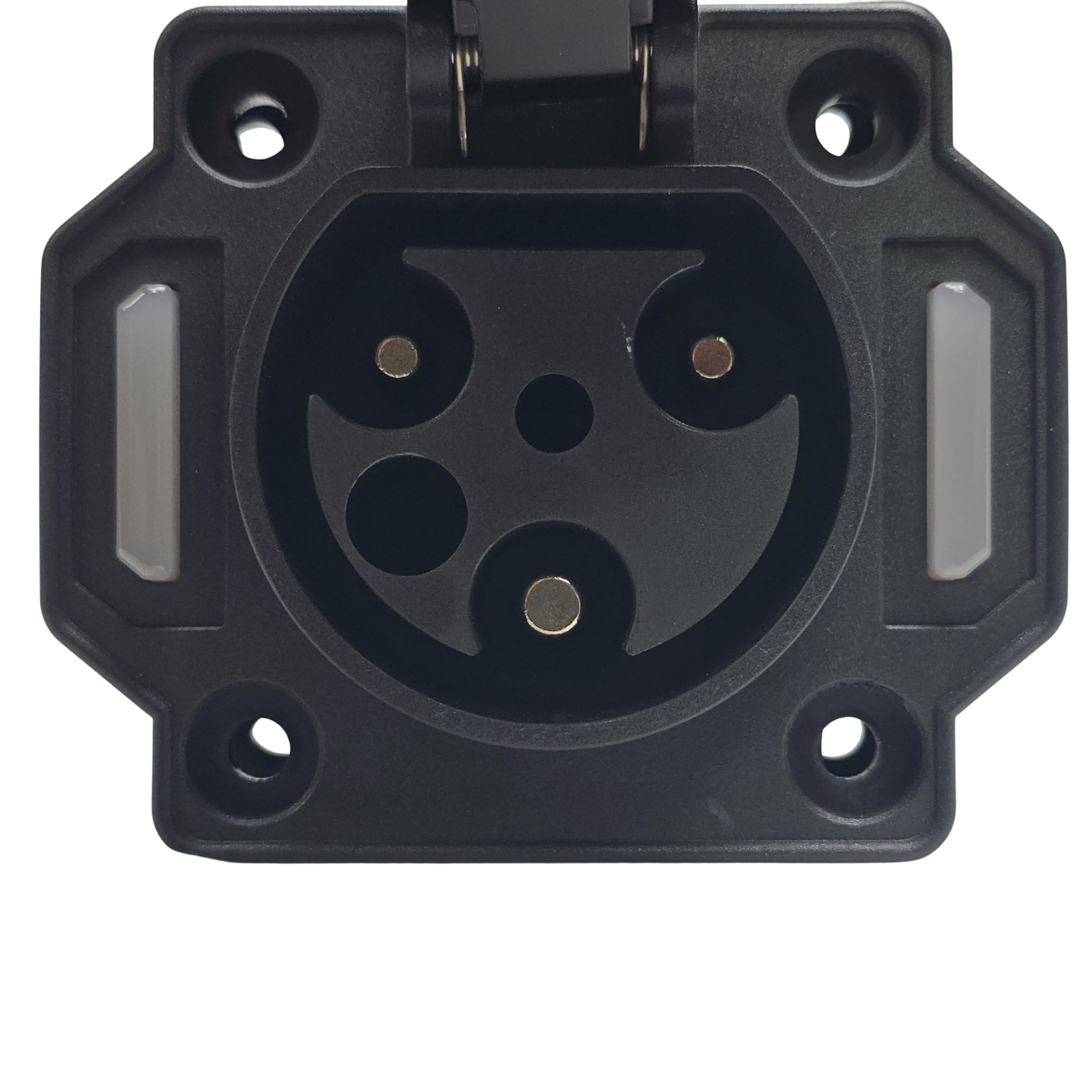

🔌 Type 2 (IEC 62196-2) Interface
Standardized female socket compatible with most EVs and EVSEs used across Europe and Asia.

⚙️ Panel Mount Design
Pre-drilled mounting holes make installation on panels, walls, or enclosures quick and secure.

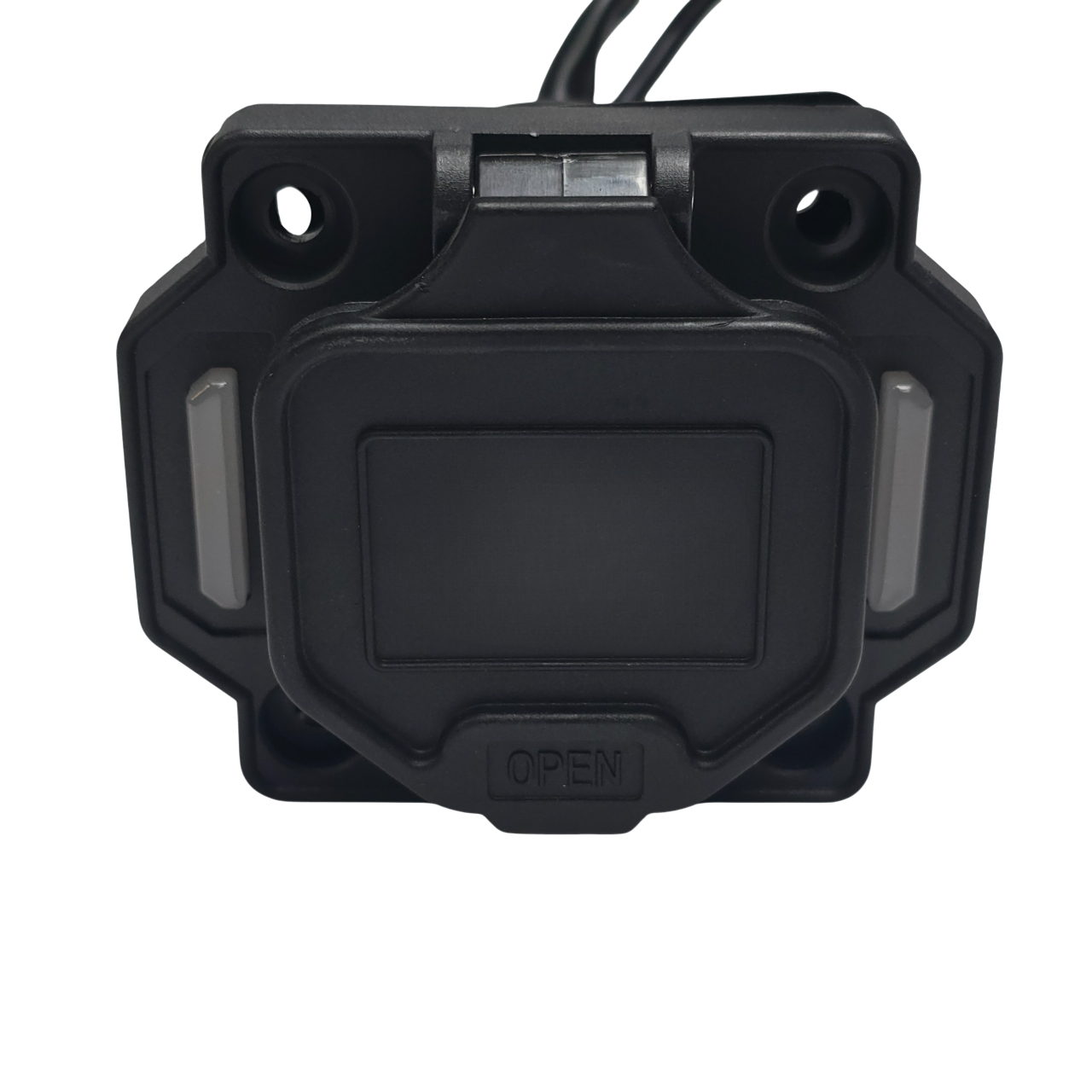

💡 Spring-Loaded Protective Cap
Keeps dust, moisture, and debris out when the socket is not in use, extending product life and maintaining safety.

🔋 Efficient Power Delivery
Copper alloy contact pins ensure high conductivity, low resistance, and efficient current transfer.

☔ Weather & Dust Resistant
Engineered with IP-rated sealing to protect against moisture and dust, suitable for both indoor and outdoor environments.

🔥 Heat-Resistant Thermoplastic Housing
The outer shell is made of flame-retardant, high-strength plastic to withstand high temperatures and physical stress.

🔒 Secure Fit
Designed to provide a tight, stable connection with charging plugs, minimizing the risk of accidental disconnection.

Technical Specifications:

• Connector Type: Type 2 (IEC 62196-2 Female Socket)

• Current Rating: Up to 32A (AC charging)

• Voltage Rating: 250V–480V AC (3-phase support)

• Contact Pins: Copper alloy, silver-plated

• Mounting Type: Panel mount (4-screw)

• Protection: IP54 or higher (with cap closed)

• Operating Temperature: -30°C to +50°C

• Material: Flame-retardant thermoplastic

Applications:

• EV charging stations

• Wall-mounted EV chargers

• Home and commercial charging points

• Retrofit EV conversion kits

• Charging cabinets and kiosks
